The electronic cigarette and e-liquid industry is currently in the grip of a sensory arms race. Over the past five years, the global market has witnessed an exponential surge in the demand for "Ice," "Glacier," and "Sub-Zero" flavor profiles. What began as a subtle, refreshing mint undertone in the early days of open-system vaping has escalated into an aggressive pursuit of absolute zero, driven largely by the explosive popularity of disposable vape devices. Today, e-liquid manufacturers and flavor chemists are constantly pushing the boundaries of synthetic cooling agents, attempting to deliver the most intense, icy throat hit possible. But as we continue to saturate our formulations with higher and higher concentrations of chemical coolants, a critical question emerges for our industry: How cold can vapes go before consumers recoil?As a leading manufacturer of premium flavorings and specialized cooling agents for e-liquids, we understand the delicate alchemy required to formulate the perfect "Ice" vape. We also recognize that the race to the bottom of the thermometer is fraught with physiological limitations, chemical formulation hurdles, and emerging regulatory roadblocks. The "Ice Wars" are no longer just about adding more menthol; they are about precision engineering, molecular receptor targeting, and understanding the biological thresholds of the human respiratory system.In this comprehensive, technically-rich guide, we will dissect the anatomy of the "Ice" effect. We will explore the neurophysiology of cooling agents, break down the chemical arsenal of synthetic coolants (from WS-3 to WS-23 and beyond), analyze the formulation challenges of extreme cold, and examine the critical toxicological data that is currently reshaping global vape regulations. Whether you are an e-liquid brand owner, a master mixologist, or a regulatory compliance officer, understanding the science behind the chill is essential for engineering the future of flavor.
Chapter 1: The Neurophysiology of "Cold" in Vaping
To understand why consumers crave the "Ice" hit, and conversely, why they eventually recoil from it, we must first look at the human nervous system. When a vaper inhales an ice-flavored e-liquid, they are not actually experiencing a drop in physical temperature. Instead, they are experiencing a complex neurochemical illusion.
1.1 The TRPM8 Receptor: The Body's Thermostat
口腔、喉咙及呼吸道中的寒冷感,主要由一种被称为的特定蛋白通道调控—— TRPM8 (Transient Receptor Potential Cation Channel Subfamily M Member 8)受体。TRPM8是一种离子通道,存在于支配面部、口腔和鼻腔感觉神经元中的三叉神经中。Under normal physiological conditions, the TRPM8 receptor is activated by physical temperature drops—specifically, when ambient temperatures fall below 26°C (78.8°F). When activated, the receptor opens its cellular gates, allowing calcium and sodium ions to flood into the neuron. This depolarization sends a rapid electrical signal up the trigeminal nerve to the brain, which the brain interprets as "cold."However, TRPM8 is also a chemosensor. It can be chemically "tricked" into opening by specific ligand molecules, the most famous of which is menthol. When synthetic cooling agents bind to the TRPM8 receptor during an inhalation, they trigger the exact same ion influx as physical cold. The higher the binding affinity of the coolant molecule, the more intense the sensation of cold, regardless of the actual temperature of the inhaled vapor.
1.2 三叉神经与感官过载
三叉神经(第V脑神经)负责传递这些感觉信息。轻微激活TRPM8会带来愉悦且清新的感觉,但过度刺激则会超越生物阈值,从温感转变为疼痛感。When e-liquid formulators push cooling agents to extreme concentrations, the massive influx of calcium ions hyper-polarizes the sensory neurons. The brain begins to interpret this overwhelming signal not as a refreshing breeze, but as an aggressive, freezing burn. This is the physiological mechanism behind "brain freeze" (sphenopalatine ganglioneuralgia) and the sharp, uncomfortable chest-tightness that consumers experience when an e-liquid is simply "too cold." Understanding this neurological threshold is the first step in recognizing that there is a definitive biological limit to the Ice Wars.
The Limitation:Menthol has a powerful, distinct, and highly polarizing peppermint flavor. In e-liquid formulation, if you want to create an "Iced Strawberry" or a "Chilled Mango," adding enough menthol to achieve the desired coldness will inevitably overwrite the delicate fruit notes, turning the profile into "Strawberry Mint." This flavor-muting characteristic necessitated the development of odorless synthetic alternatives.

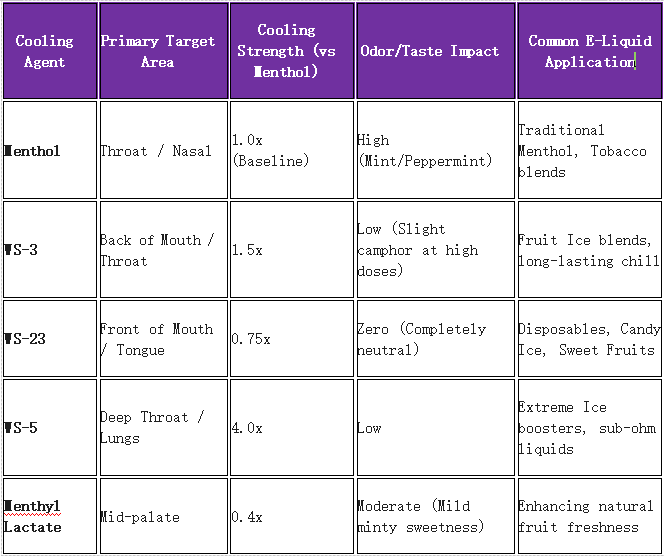

2.2 第二代:WS-3与威尔金森剑的传承
In the 1970s, the Wilkinson Sword company embarked on a massive research project to develop odorless cooling agents for shaving creams, to avoid the stinging irritation of menthol. They synthesized over 1,200 compounds, naming them the "WS" series.WS-3 (N-Ethyl-p-menthane-3-carboxamide)这是该研究的早期商业成功之一,至今仍是电子烟行业的主流产品。
Cooling Intensity:约为薄荷醇的1.5倍强度。
Sensory Profile:WS-3主要作用于口腔后部和喉咙顶部,带来持久而深邃的寒意。
Formulation Note:While largely odorless, at very high concentrations, WS-3 can impart a slight, bitter, or "camphor-like" off-taste, which can distort delicate dessert or bakery profiles.
WS-23分子
2.3 Third Generation: WS-23 - The Industry Standard
Sensory Profile:WS-23 is famous for its "front of the mouth" and tongue cooling effect. It is completely round, smooth, and does not carry the harsh throat hit associated with menthol.
The Advantage:WS-23 is entirely odorless and tasteless. It allows manufacturers to create a freezing "Iced Watermelon" where the watermelon flavor remains 100% intact, completely free of minty interference. Because of its smoothness, formulators began pushing WS-23 levels from a standard 1% up to a staggering 3%, 4%, or even 5% in disposable devices.
2.4 极端冷却剂:WS-5、WS-12与WS-27
As brands compete for the title of "coldest vape," flavor houses have resurrected other molecules from the Wilkinson Sword archives.
如WS-23和WS-3等冷却剂,通常以高纯度晶体粉末形式供应。使用前,必须先溶解于载体溶剂中,最常用的是丙二醇(PG),浓度多为20%或30%。冰战中的第一个重大障碍是 solubility limit丙二醇是一种极佳的溶剂,但植物甘油(VG)——负责产生蒸气的成分——对于合成冷却剂来说却是极差的溶剂。在高VG含量的电子液体中(例如70%的VG / 30%的PG),若将最终冷却剂浓度推得过高,就会出现过饱和。当电子液体暴露于略低的环境温度(如冬季运输或空调仓库中)时,冷却分子将从溶液中沉淀出来,恢复为固态。This recrystallization creates "shards" of WS-23 inside the e-liquid bottle. Not only does this ruin the aesthetic of the product, but it also creates a massive safety and consistency issue. If a consumer drips a crystallized chunk onto their coil, they will inhale an undiluted blast of pure coolant, resulting in severe respiratory irritation and immediate coil failure.
3.2 风味减弱现象(大分子屏蔽)
冰冷之争中最隐秘的问题之一是风味减弱。许多配方师发现,当他们将WS-23用量推至极限时,主要风味(如蓝莓沙丽或芒果)会突然消失。这主要源于 sensory saturation. The human olfactory system and the trigeminal nerve share bandwidth in the brain's processing centers. When the TRPM8 receptors send a massive, overpowering "FREEZING" signal to the brain, the brain prioritizes this intense stimuli over the more subtle olfactory signals of the fruit esters. The cold literally shouts down the flavor. To compensate, manufacturers are forced to overdose their flavorings and dramatically increase sucralose (sweetener) levels to push the fruit notes through the ice. This leads to heavily over-flavored, hyper-sweetened e-liquids that rapidly degrade hardware.
随着合成冷却剂在商业电子烟中浓度激增,尤其是在无监管或灰色市场的一次性产品中,全球卫生组织与监管机构亦开始关注。冰战已从消费者偏好的争夺,演变为毒理学审查的焦点。It is vital for responsible e-liquid manufacturers to understand that "food safe" does not automatically mean "inhalation safe."
4.1 GRAS认知误区
包括WS-3与WS-23在内的多种合成冷却剂被归类为 GRAS (Generally Recognized As Safe)由 Flavor and Extract Manufacturers Association (FEMA)然而,此“普遍认为安全”(GRAS)状态仅适用于 ingestion——通过进食和饮水。消化道拥有强大的代谢机制,而肺部则是极为脆弱的黏膜环境,直接通达血液。将食品安全数据套用到吸入安全上,是一种危险的误解,监管机构正积极纠正这一偏差。
4.2 暴露裕度(MOE)与最新研究
冰战中最具震撼性的警示来自学术界。根据一项具有里程碑意义的研究发表在 Nicotine & Tobacco Research由杜克大学的研究人员,在Sven-Eric Jordt博士的领导下,发现现代在美国市场销售的电子烟及热门一次性设备中的合成冷却剂含量已达到引发严重监管关注的水平。该研究采用了一种被称为的毒理学指标 Margin of Exposure (MOE)风险评估者(如世界卫生组织)使用的安全边际比值(MOE),通常超过100被视为安全阈值。杜克大学的研究模拟了通过电子烟液中摄取WS-3和WS-23的情况,发现绝大多数高冰感一次性产品的MOE值低于安全标准。 below在几乎所有日常使用场景中,安全边际为100。这表明消费者暴露于超出监管机构既定安全阈值的合成冷却剂水平。此外, World Health Organization (WHO) Joint Expert Committee on Food Additives (JECFA)已设定WS-3每日摄入的安全阈值。杜克的研究指出,重度电子烟用户使用极限冰味一次性设备,仅通过吸入就极易超过这一每日摄入限值。
4.3 德国BfR风险评估
随着全球监管势头的推进, German Federal Institute for Risk Assessment (BfR)近期,一项关于电子烟中冷却剂WS-23、WS-3与WS-5的全面分析显示,其结果与美国提出的担忧不谋而合。联邦风险评估研究所(BfR)利用现有的毒理学数据(包括口服研究得出的无观察到不良反应剂量NOAEL指标),制定了吸入的无效应剂量(DNEL)。他们计算了风险表征比(RCR),并得出结论:经常摄入高浓度WS-23、WS-3和WS-5的电子液体,导致的暴露水平已超出RCR为1的界限。在法规层面上,这意味着BfR认为消费者的健康风险无法排除,尤其是对长期高剂量摄入的担忧。BfR特别指出,持续高剂量摄入可能引发系统性毒性的问题。
4.4 制造商的法规前瞻
What does this mean for e-liquid brands? It means the era of unchecked, limitless "Ice" is coming to an end. Regulatory bodies like the US Food and Drug Administration (FDA) and the European Union's Tobacco Products Directive (TPD) are heavily scrutinizing synthetic coolants. They are increasingly aware that coolants are not only used to bypass menthol bans but are also added to fruit and candy flavors to increase palatability and potentially mask the harshness of high-concentration nicotine salts.制造商应采取主动策略。依赖5% WS-23的配方已难以为继,品牌须逐步转向更为智能、经过深度优化的冷却配方,以少量化学物质实现理想的感官体验。
第五章:生物极限——何时寒冷变得难以忍受?
即使没有监管限制,冰冷之争终究会遇到生物学的天花板。人体生理机制内置抵御持续极端刺激的防御屏障。
5.1 Vaper's Fatigue and Receptor Downregulation
When TRPM8 receptors are constantly bombarded with high doses of WS-23, the nervous system adapts. This is known as sensory adaptation or, colloquially, "Vaper's Tongue." The receptors downregulate their sensitivity to protect the nerve pathways from continuous overstimulation.As a result, a consumer vaping a "Max Ice" disposable will, after a few days, perceive the vape as less cold. The danger here is the escalation cycle. To get the same "hit," the consumer seeks out an even colder product. However, while the perception随着冷感的减弱,化学物质的实际接触仍在持续,悄然刺激肺部黏膜。最终,这种刺激超过了冷感带来的舒适,导致咳嗽、喉咙紧绷,消费者纷纷退出,寻找完全无冷感的风味以让感受器得以修复。
5.2 市场地域:全球冰感容忍度的差异
有趣的是,反弹阈值并非一成不变,它高度依赖于地区市场的偏好。
Southeast Asia (APAC):冰战的无可争议的核心市场包括马来西亚、印度尼西亚和菲律宾。由于当地炎热潮湿的气候,消费者对极端冷感的耐受度极高,需求也异常强烈。为这些地区生产的电子液体中,WS-23的含量常常远超西方消费者所能忍受的极限,令人感觉疼痛。
United Kingdom and European Union:European vapers generally prefer a more balanced profile. While "Ice" variants are popular, the EU market tends to reject the brutal, lung-freezing products favored in APAC, preferring a cooling sensation that complements rather than dominates the fruit notes. TPD compliance and stringent health consciousness also temper the Ice trend here.
United States:美国市场呈现深度分裂。传统开放式电子烟用户多偏好适度冷感,而以年轻人为主导的一次性产品市场则高度趋向极端冰感。然而,近期FDA的PMTA(预市场烟草产品申请)打击行动,以及不断变化的合成香料法规环境,促使美国制造商逐步减少冷却剂的用量,以规避监管风险。
Instead of dumping 4% of WS-23 into a mix, master mixologists are utilizing the "layering" technique. By combining multiple cooling agents at much lower concentrations, formulators can create a robust, 3D cooling effect that feels intensely cold without exceeding toxicological thresholds or muting the primary flavor.
The Golden Ratio (WS-23 + WS-3):一种常见且极为有效的调配方式,是将WS-23(带来即时平滑的口腔前端感受)与较少比例的WS-3(传递寒意至喉咙后部)相结合。例如,1.0%的WS-23配合0.3%的WS-3,比单独使用2.0%的WS-23带来更持久、更令人满意的凉感,同时有效降低35%的化学总负荷。
Menthyl Lactate Synergy:Adding a trace amount of Frescolat ML (Menthyl Lactate) to a WS-23 formulation smooths out the chemical edge of the synthetic coolant, providing a more "natural" juiciness to fruit profiles, particularly citrus and berry blends.
6.2 利用酯类与酸类化合物
冷却剂的效果并非孤立存在,其感知强度深受周围电子液体的pH值与化学成分影响。
Malic Acid and Citric Acid:天然水果酸的加入降低了电子烟液的pH值,能够增强寒冷的感觉。酸涩的青苹果风味天生比浓郁细腻的香草奶油更令人感受到冰凉与清新,即使两者所含WS-23的百分比完全相同。
To maximize the efficiency of lower-dose coolants, manufacturers must ensure perfect molecular distribution. High-shear homogenization during the manufacturing process ensures that the WS crystals are fully dissolved and uniformly integrated into the PG/VG matrix. Proper steeping (maturation) time allows the coolants to bond seamlessly with the flavor volatile compounds, preventing the "chemical separation" taste where the user tastes coldness and fruit as two disjointed elements rather than a single, cohesive flavor.
风味与冷感的较量
结语:在冰战中生存之道
The "Ice" Wars have driven incredible innovation in the e-liquid industry, transitioning the market from the harshness of raw menthol to the refined, targeted chill of modern synthetic amides. However, as we approach the absolute biological and regulatory limits of how cold a vape can go before consumers recoil, the industry must pivot.单纯依靠蛮力配方已不再可行。来自BfR等机构及杜克大学研究者的毒理学审查日益加剧,明确指出大量使用WS-23与WS-3存在无法量化的长期风险,且引发强烈的监管干预。未来的冷却技术,必将走向精细化:深入理解受体生物学、运用协同冷却层叠、尊重暴露安全阈值,并以最小的化学足迹,呈现令人震撼的感官体验。As a manufacturer, your goal shouldn't be to make the coldest vape on the market; your goal should be to make the best市场上已有一种冷感电子烟,消费者可以整日享用,无须担心生理反应或风味疲劳。
