Introduction: Quality is Not a Department, It’s a Culture

Flavorings used in e-liquids demand a level of quality assurance far beyond traditional food or beverage applications. These concentrates are inhaled, not ingested, and are subject to both regulatory scrutiny and user sensory expectations. From the moment raw materials are delivered in ISO-certified tanks to the final sip on a tasting panel, flavor manufacturers must follow a rigorous quality control (QC) process designed to ensure purity, stability, and sensory consistency.

In this post, we go behind the scenes to explore the end-to-end quality control system of a high-standard flavoring manufacturer—with insights that reflect the latest vape production standards. We use CUIGUAI Flavoring as a representative model to showcase best practices.

Overview of E-liquid Flavor Quality Control System

1. The Foundation: Setting Up an ISO-Compliant Flavor Factory

1.1 Infrastructure and Facility Design

A proper quality assurance program starts with the factory layout. A flavoring facility that complies with ISO 9001, ISO 22000, or FSSC 22000 will ensure:

• Separate zones for raw material handling, blending, and storage
• HEPA-filtered air zones to prevent contamination
• Stainless steel contact surfaces for easy sanitation
• Anti-static flooring and temperature/humidity controls

1.2 Equipment Calibration and Documentation

Precision depends on equipment accuracy. All tanks, scales, GC-MS machines, and mixing vessels undergo scheduled calibration. Documentation is mandatory. Calibration records are part of any internal or third-party audit under ISO standards.

2. Raw Material Control: The First Line of Defense

2.1 Vendor Qualification

Not all PG (propylene glycol), VG (vegetable glycerin), or flavor actives are created equal. Manufacturers must audit and qualify every supplier based on:

• Material Safety Data Sheets (MSDS)
• Allergen statements
• Halal/Kosher compliance (if relevant)
• Batch-to-batch variation history
• Heavy metal, pesticide, and microbial testing capabilities

2.2 Receiving & Quarantine Procedures

When ISO tanks or drums of raw materials arrive, they’re not sent straight into production. QC inspectors:

• Label and quarantine each batch
• Take representative samples using ISO 5555 techniques
• Conduct initial ID testing (e.g., GC-MS fingerprinting, refractive index, density)

Only after passing these checks are materials released for production.

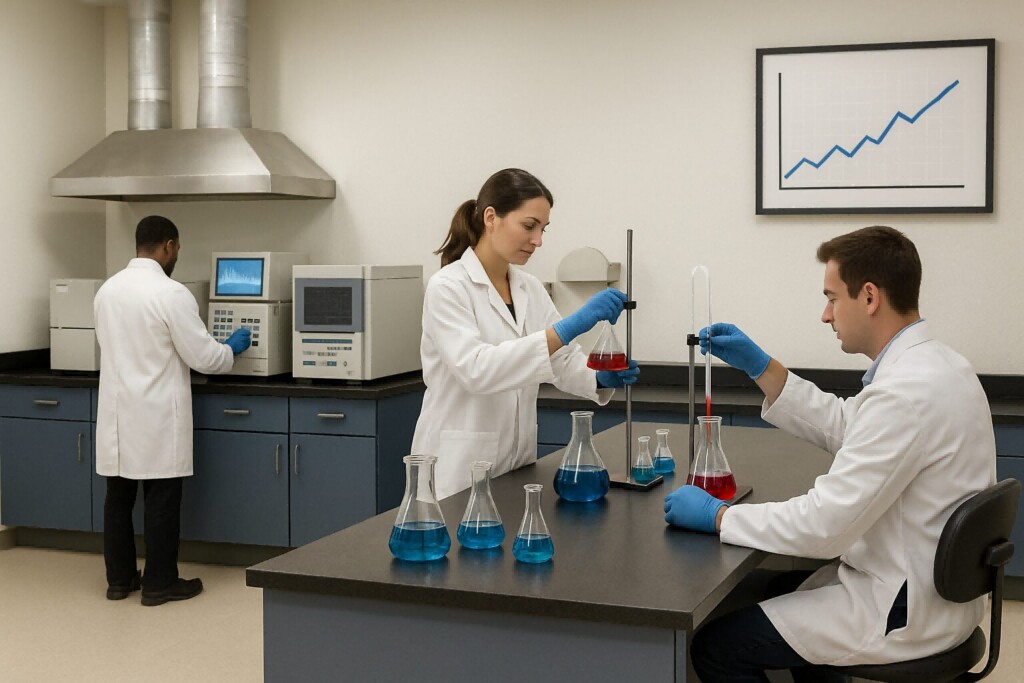

Raw Material Inspection Lab Setup

3. Formulation & Batch Mixing: Control by Design

3.1 Digital Batch Tracking

Every approved batch is mixed under traceable batch numbers using digital systems. A minor deviation—even 0.01%—in a compound’s weight triggers an alert. Smart dispensers with barcode-linked formula control systems are common.

3.2 In-Process Quality Checks

• pH, Brix, viscosity: Measured in real time
• Color matching: Compared to reference standards via spectrophotometry
• Odor fingerprint: Verified by trained evaluators to catch off-notes early

3.3 Allergen & Cross-Contamination Control

Dedicated tanks and mixing zones are used for formulas containing nut-based or high-allergen ingredients. Intermediate flushes using ethanol or PG are mandated to avoid cross-contamination.

4. Flavor Aging, Shelf Life, and Stability Testing

4.1 Simulated Storage Conditions

Flavorings often degrade due to light, oxygen, or thermal cycling. Manufacturers simulate these conditions through:

• Accelerated stability testing(45°C for 2–4 weeks)
• Light exposure simulation(UV chambers)
• Oxygen permeability studies(especially for dropper bottle packaging)

Results determine whether antioxidants or oxygen scavengers are necessary.

4.2 Shelf Life Extension without Over-preservation

Too many synthetic preservatives can distort taste or increase regulatory concerns. CUIGUAI Flavoring has innovated with natural stabilizers such as botanical esters or tocopherols to keep vape flavorings fresh longer without overpowering the profile.

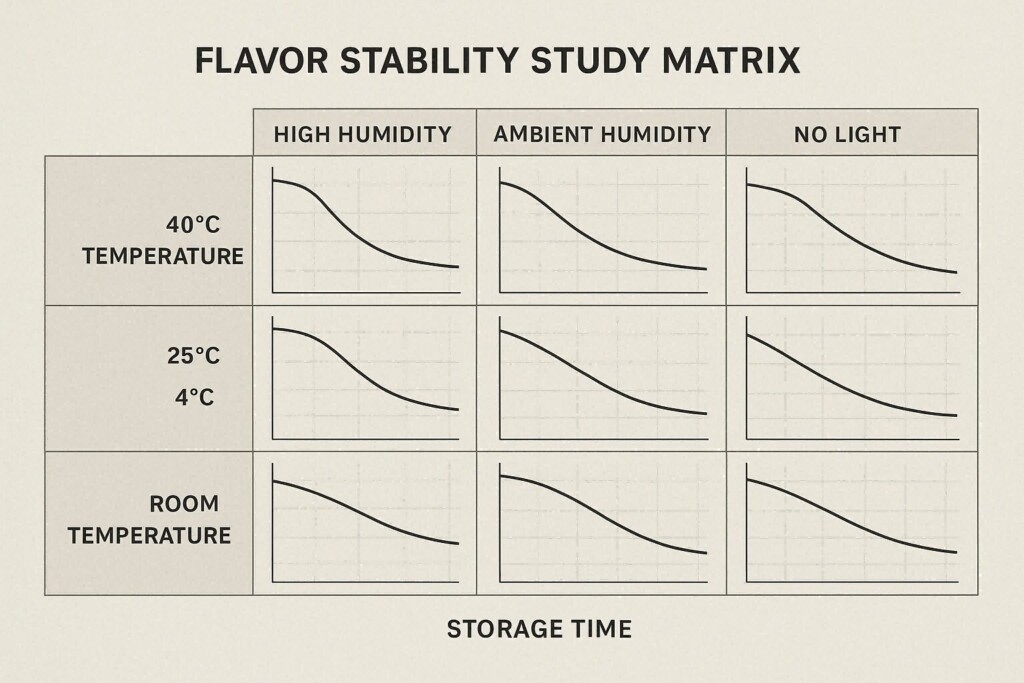

Flavor Stability Study Matrix

5. Sensory Testing: The Role of Tasting Panels

5.1 Expert Panels vs. User Panels

Flavor is ultimately subjective—but standardization is possible:

• Expert panel: Trained flavorists using SCA (Sensory Calibration Attributes) testing
• User panel: General vapers segmented by preferences (e.g., mint, dessert, tobacco)

Tasters evaluate:

• Top note consistency
• Mouthfeel (warmth, coolness, tingling)
• Aftertaste persistence
• Off-notes from oxidation or component imbalance

5.2 Sample Blinding and Triangle Testing

To avoid bias:

• Samples are coded and randomized
• Triangle tests (2 same, 1 different) identify subtle changes
• Statistical methods such as ANOVA or chi-square ensure meaningful results

6. Final Quality Release: Documents, Compliance, and Traceability

6.1 Batch Certificates

Each production batch must pass a Final QC protocol to receive:

• Certificate of Analysis (COA)
• Sensory Evaluation Summary
• Component Breakdown
• Regulatory Compliance Statement (e.g., REACH, TPD, FDA if applicable)

6.2 Batch Recall Readiness

ISO-certified factories must implement a mock recall annually to ensure that any ingredient used in a batch can be traced back within 2 hours.

7. Continuous Improvement and Audit Readiness

7.1 Internal Audits

Monthly audits assess:

• Microbial swabs on equipment
• GMP protocol adherence
• QC lab result consistency

7.2 Customer Feedback Integration

Customer complaints, sensory feedback, or returns feed into CAPA (Corrective and Preventive Action) systems. This feedback loop drives process improvements across formulation, QC, and logistics.

8. Why QC-Driven Brands Win: Case Example of CUIGUAI Flavoring

CUIGUAI Flavoring has built its reputation through an uncompromising QC framework. From ISO-certified raw material intake to advanced tasting panel feedback, their flavor design and delivery meet the highest vape production standards. Whether you’re producing high-VG clouds or flavor-rich MTL blends, the flavor must be not only delicious but reliable, compliant, and safe.

If you’re looking for a flavor partner that treats QC as a core value—not a checkbox—CUIGUAI Flavoring offers industry-leading solutions tailored for the next generation of vape products.

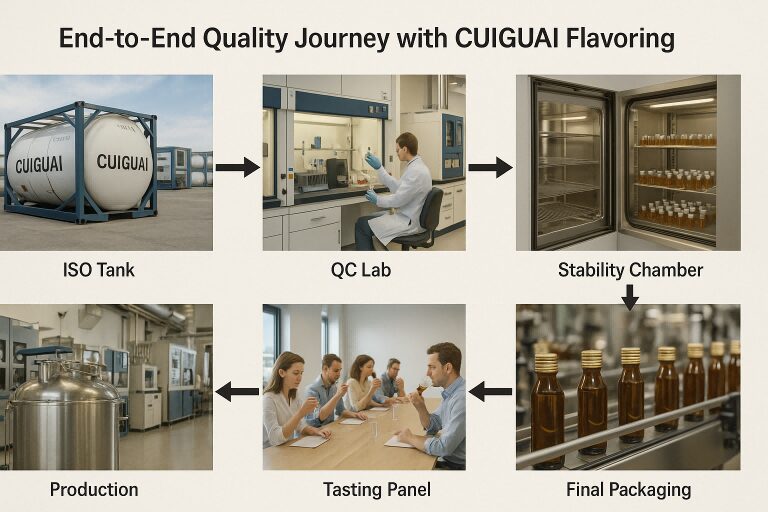

End-to-End Quality Journey with CUIGUAI Flavoring

Conclusion: Future-Proofing Flavor Quality

Quality control in flavoring manufacturing is more than just passing tests—it’s about building a system that anticipates failure, corrects course quickly, and maintains trust from regulatory bodies and consumers alike.

With global vape production standards becoming more stringent, and consumer awareness growing, flavoring manufacturers must embrace an integrated QC philosophy. The brands that invest in flavor QC today are the ones that will still be around tomorrow.

Looking to explore high-performance, quality-tested flavoring concentrates? Visit CUIGUAI Flavoring to learn how their QC-backed innovation can elevate your next vape formulation.
