Choosing the Right Emulsifier: A Technical Masterclass in Achieving and Maintaining Aroma Emulsion Stability

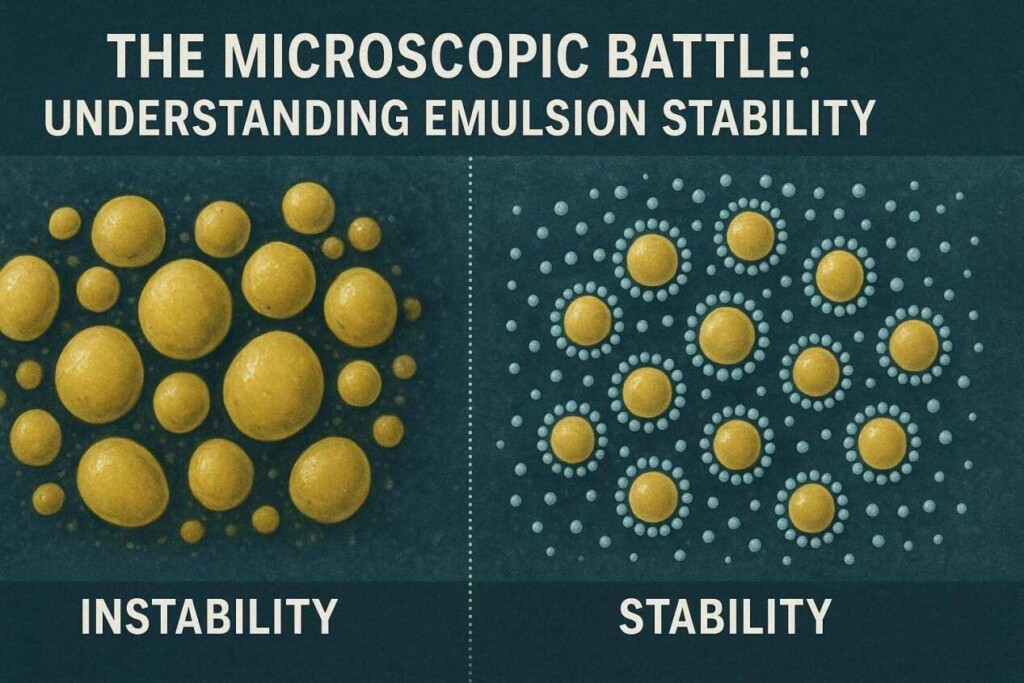

Emulsion Stability Under the Microscope

In the dynamic world of flavor and aroma, the pursuit of perfection is a constant journey. A flavor chemist meticulously crafts a complex profile, a symphony of compounds designed to deliver a specific sensory experience. But a brilliant flavor, no matter how perfectly formulated, is only as good as its stability.

The challenge begins with a fundamental incompatibility: the need to blend immiscible liquids. Many of the most potent and desirable aroma compounds are oil-soluble, while the primary carriers for products like e-liquids, beverages, or sauces are water-based. The result is a two-phase system that, if left unmanaged, will inevitably separate. This separation is more than just an aesthetic issue; it is a critical flaw that can lead to inconsistent flavor delivery, a poor consumer experience, and irreversible brand damage.

This is where the humble but powerfulemulsifiercomes into play. Choosing the right emulsifier is not a simple task; it is a sophisticated discipline that demands a deep understanding of colloid chemistry, a strategic approach to formulation, and a rigorous, data-driven selection process. This comprehensive technical guide will serve as a definitive blueprint for navigating the complexities of emulsifier selection, providing the knowledge and strategies required to ensure your product remains a perfectly stable, homogenous masterpiece from the moment it leaves the production line to the moment it is consumed.

The Science of Emulsion: An Essential Foundation

To make an informed decision about an emulsifier, you must first understand the fundamental science of emulsion itself.

1. What is an Emulsion?

An emulsion is a two-phase system of two immiscible liquids, with one liquid dispersed as tiny droplets in the other. In the context of flavor, we are typically dealing with anoil-in-water (O/W) emulsion, where the oil-based flavor concentrate is thedispersed phaseand the water-based carrier (like propylene glycol and vegetable glycerin in e-liquids) is thecontinuous phase. Without an emulsifier, the oil droplets would quickly clump together due tointerfacial tension, a natural force that causes liquids to separate to minimize their surface area.

2. The Role of an Emulsifier

An emulsifier is asurfactant, or a surface-active agent. It is a molecule that has a dual nature: ahydrophilic(water-loving) head and alipophilic(oil-loving) tail.

• Acting as a Bridge:When an emulsifier is added to an immiscible system, the lipophilic tails dissolve into the oil droplets, while the hydrophilic heads extend outward into the water phase. This creates a protective layer around each oil droplet, effectively reducing the interfacial tension and preventing the droplets from coalescing.
• Creating a Micelle:The stabilized, emulsified droplet is known as amicelle. The stability of the final emulsion is entirely dependent on the effectiveness of the emulsifier in forming and maintaining these protective micelle layers.

3. The Challenge of Instability: Why Emulsions Fail

Emulsions are thermodynamically unstable systems. Over time, they will naturally try to return to their lowest energy state—two separate, bulk liquid phases. This instability manifests in several ways:

• Creaming or Sedimentation:This is the most common form of instability, where the dispersed phase separates from the continuous phase due to differences in density. Lighter oil droplets will rise to the top (creaming), while heavier droplets will sink (sedimentation).
• Flocculation:A less severe form of instability where droplets clump together but do not merge. This can lead to a cloudy appearance.
• Coalescence:The most severe form of instability, where the protective emulsifier layer breaks, allowing the oil droplets to merge and form a single, bulk oil layer. This is a complete and irreversible phase separation.
• Phase Inversion:When a stable O/W emulsion inverts to a W/O emulsion, often due to an imbalance in the emulsifier system or a change in temperature. A 2023 study in theJournal of Colloid and Interface Sciencedetailed the physical and chemical mechanisms behind these instability types, highlighting their direct relationship to the choice and concentration of the emulsifier (Reference 1:Colloid Interface Sci., 2023, “Mechanisms of Emulsion Instability and Surfactant Selection”).

The Emulsifier Spectrum: A Technical Breakdown

Choosing the right emulsifier begins with understanding the properties of the available options. The most critical tool for this is theHydrophilic-Lipophilic Balance (HLB) value, a numerical scale from 0 to 20 that indicates a surfactant’s affinity for oil or water.

• Low HLB (3-6):Emulsifiers with low HLB values are more lipophilic and are best for creatingwater-in-oil (W/O)
• High HLB (8-18):Emulsifiers with high HLB values are more hydrophilic and are best for creatingoil-in-water (O/W)emulsions, which are what we need for e-liquids.

1. Natural and Food-Grade Emulsifiers

These emulsifiers are derived from natural sources and are widely used in the food and beverage industry.

• Lecithin:Typically sourced from soy, sunflower, or egg yolks. Lecithin is a mixture of phospholipids and has a relatively low HLB value, but it is often used in combination with other emulsifiers for its synergistic properties. It is a highly versatile and naturally-derived option.
• Gum Arabic (Acacia Gum):A highly water-soluble gum with a high molecular weight. It functions as a hydrocolloid and is a very effective stabilizer, particularly for high-acid or high-sugar emulsions. It works by creating a protective, viscous layer around the oil droplets, preventing flocculation and coalescence.
• Glycerol Monostearate (GMS):A common food emulsifier used to create stable emulsions. It has a low HLB value and is often paired with a high HLB emulsifier for optimal results.

2. Synthetic and Specialized Emulsifiers

These are synthetically produced emulsifiers known for their specific properties and stability.

• Polysorbates (e.g., Polysorbate 80):A family of synthetic emulsifiers with a high HLB value (Polysorbate 80 has an HLB of 15). They are highly effective for creating and maintaining stable O/W emulsions, even at low concentrations. They are widely used in the flavor industry due to their excellent emulsifying properties andGenerally Recognized as Safe (GRAS)status by the FDA.
• Sucrose Esters:Created from the esterification of sucrose and fatty acids. Their HLB can be tailored by adjusting the degree of esterification, making them highly versatile for different applications. They are used for their emulsifying and stabilizing properties and are a popular choice in certain food systems.
• Propylene Glycol Mono- and Di-Esters (PGMS):These are food-grade emulsifiers created from propylene glycol and fatty acids. They are often used in baked goods and dairy products for their emulsifying and aerating properties.

OFlavor and Extract Manufacturers Association (FEMA)‘s safety and quality guidelines provide a framework for the safe use of all these emulsifiers in flavor formulations, ensuring they adhere to the highest industry standards (Reference 2:FEMA, 2024, “Safety and Quality Guidelines for Flavoring Substances”).

The Emulsifier Selection Process: A Data-Driven Approach

Choosing the right emulsifier is a systematic, data-driven process, not a matter of guesswork. It is a series of controlled experiments designed to find the optimal solution for your specific flavor system.

Step 1: Characterize the Flavor System

Before you even begin testing, you must understand your flavor’s properties.

• Hydrophobicity/Lipophilicity:What is the overall oil content and polarity of your flavor concentrate?
• Viscosity:What are the viscosities of the flavor concentrate and the carrier base (VG/PG)? This will determine the type of mixing equipment you need.
• Acidity/pH:The pH of the system can affect the stability and effectiveness of certain emulsifiers.

Step 2: The HLB Calculation and Initial Screening

While the HLB is a guide, it is a crucial starting point. You will calculate therequired HLBfor your flavor system and then select a series of emulsifiers, or a blend of emulsifiers, that have a corresponding HLB.

• Trial and Error:You can’t rely on the calculated HLB alone. You must screen a range of emulsifiers at small scale to find the most effective one for your specific flavor. This is because every flavor’s chemical profile is unique.

Step 3: Emulsifier Screening and Optimization

This is where the real work begins.

• Small-Scale Trials:Perform a series of small-scale tests. Create a dozen or more versions of your flavor, each with a different emulsifier or a different blend of emulsifiers.
• Mixing and Dosing:Ensure the mixing procedure is precise, including the order of addition and the mixing time. Accurately dose each emulsifier.
• Sensory and Visual Evaluation:After mixing, visually inspect each sample for homogeneity and clarity. Also, conduct a sensory evaluation to ensure the emulsifier does not impart any unwanted taste or aroma to the final product.

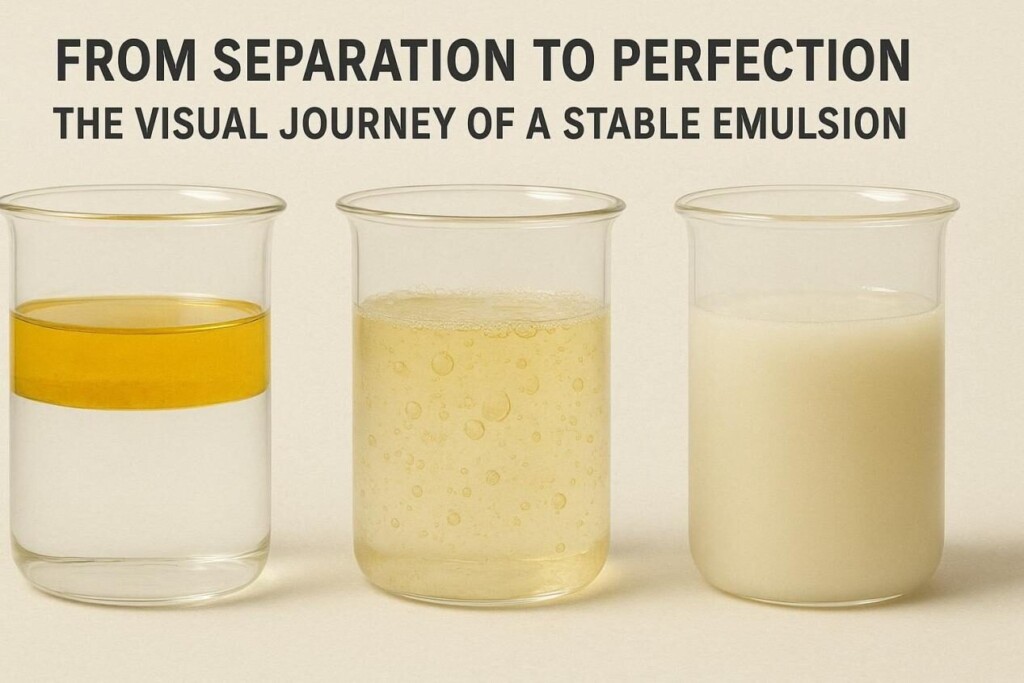

Stages of Emulsion Formation

Engineering and Operational Considerations

The right emulsifier is only half the battle. The process by which the emulsion is created is just as critical to its stability.

1. Mixer Technology: The Role of Shear Force

A simple propeller mixer, which is common for mixing single-phase liquids, is often insufficient for creating a stable emulsion.

• High-Shear Mixers:To create the tiny droplets required for a stable emulsion, you need a high-shear mixer. These mixers use a rotor-stator system to apply immense shear force, breaking down the dispersed phase into very fine, uniform droplets.
• Homogenizers:For a truly stable, long-lasting emulsion, ahomogenizeris the gold standard. A homogenizer forces the emulsion through a small, high-pressure valve, further reducing the droplet size and creating an exceptionally stable product.

2. The Importance of a Defined Process

A stable emulsion is a result of a repeatable, scientifically validated process.

• Standard Operating Procedure (SOP):You need a detailed SOP that specifies every step of the process, including:
  • The exact order of ingredient addition (the emulsifier is typically added to one of the phases before mixing).
  • The mixing time and speed.
  • The final temperature and pressure of the process.

3. Raw Material Purity and Consistency

The final product’s stability is also dependent on the purity and consistency of the raw materials.

• Supplier Qualification:Use a supplier qualification program to ensure your suppliers provide consistent, high-purity ingredients. A variation in the viscosity of a batch of propylene glycol or the composition of a flavor concentrate can derail a perfectly validated emulsion process.

4. Regulatory Compliance and Safety

The choice of emulsifier has direct implications for a product’s safety profile.

• FDA and GRAS Status:OUS Food and Drug Administration (FDA)maintains a list of substances that areGenerally Recognized as Safe (GRAS)for use in food products. All emulsifiers used in a product, especially those that are to be inhaled, must have a clear and well-documented safety profile. Using an unapproved emulsifier is a serious regulatory violation. A 2023FDAguidance document highlighted the importance of using GRAS-certified ingredients in e-liquid formulations to ensure consumer safety (Reference 3:FDA, 2023, “Guidance on E-liquid Ingredients and Safety”).

The Strategic and Economic Implications

The choice of emulsifier is not just a technical detail; it is a strategic business decision with significant economic and reputational consequences.

1. Cost-Benefit Analysis: A Long-Term View

A cheap, unsuited emulsifier might save a few dollars per batch, but the long-term costs of a separated product are catastrophic.

• Product Recalls:A batch that separates on the shelf can lead to costly and reputation-damaging product recalls.
• Wasted Materials:A failed emulsion results in the loss of an entire batch of expensive flavor concentrate, VG/PG, and nicotine.
• Brand Damage:A separated product, a bottle with an oily layer on top, looks unprofessional and cheap. It erodes consumer trust and can permanently damage a brand’s reputation for quality.

2. Consumer Experience and Brand Integrity

A stable, homogenous product is a silent but powerful signal of quality and expertise. It shows the consumer that the brand has a deep understanding of its product and is committed to delivering a superior experience every single time. A recent report fromEuromonitor Internationalnoted that product consistency is a key driver of consumer loyalty in the food and beverage industry, citing it as a top-three factor in repeat purchases (Reference 4:Euromonitor International, 2024, “Consumer Loyalty Drivers in the Food & Beverage Market”).

Precision in Emulsion Science

Conclusion: The Final Proof of Concept

The selection of the right emulsifier is one of the most critical decisions a formulator can make. It is a journey that moves beyond a simple Google search for “emulsifier” and into the realm of advanced chemistry, rigorous testing, and a deep commitment to product integrity.

By understanding the science of emulsion, systematically screening and validating emulsifier options, and implementing a scientifically sound process, a brand can ensure that its product is not only delicious but also flawlessly stable. This commitment to stability not only prevents costly failures but also builds a foundation of consumer trust that is invaluable in a competitive market. In the end, mastering the art and science of emulsifier selection is a testament to a brand’s dedication to quality, and a guarantee of excellence in every single bottle.

• Reference 1:Journal of Colloid and Interface Science, “Mechanisms of Emulsion Instability and Surfactant Selection,” 2023.
• Reference 2:Flavor and Extract Manufacturers Association (FEMA), “Safety and Quality Guidelines for Flavoring Substances,” 2024.
• Reference 3:US Food and Drug Administration (FDA), “Guidance on E-liquid Ingredients and Safety,” 2023.
• Reference 4:Euromonitor International, “Consumer Loyalty Drivers in the Food & Beverage Market,” 2024.

Keywords:vape flavor emulsifier choice, aroma emulsion stability

Author:R&D Team, CUIGUAI Flavoring

Published by:Guangdong Unique Flavor Co., Ltd.

Last Updated:Sep 15, 2025
