A liquid flavor concentrate is one of the most chemically complex ingredients in the modern supply chain. A single commercial profile may contain thirty or more flavoring substances dissolved in propylene glycol, vegetable glycerin, ethanol, or triacetin, and it is delivered to an e-liquid manufacturer who will dilute it, blend it with other ingredients, fill it into child-resistant packaging, and place it on a consumer shelf. That complexity is exactly why a Hazard Analysis and Critical Control Point (HACCP) plan is not a paperwork exercise. It is the operating system that separates a repeatable manufacturing process from a hope that nothing goes wrong.
HACCP is a systematic, preventive approach to safety. Rather than testing finished product and hoping that a sample happens to be clean, HACCP identifies where hazards could enter a process, installs a control at those specific points, and proves through records that the control worked. The method was created for the United States space program in the 1960s, was codified internationally by the Codex Alimentarius Commission, and has since become the backbone of food safety law in the United States, the European Union, the United Kingdom, Canada, and most other major importing markets.
For flavor houses, the commercial stakes are as high as the regulatory ones. A well-built HACCP plan is a sales document. It is what allows a brand owner to place a concentrate on a regulated market, what allows an importer to sign a long-term supply agreement, and what allows a customer auditor to conclude in a single morning that a factory deserves to stay in the chain. Without it, a flavor supplier is limited to buyers who are willing to accept unverified risk.
This guide walks through how a HACCP plan is actually constructed for liquid flavoring production, not for a generic food factory. It covers the five preliminary steps, the seven Codex principles, the way a process flow diagram for a flavor concentrate translates into critical control points, the prerequisite programs that must sit underneath the plan, and the verification activities that keep it alive between audits. It is written for quality managers, brand owners, and procurement teams who need to read a supplier’s HACCP plan critically rather than politely.
One clarification before starting. HACCP is a system, not a certificate. Two factories can hold the same certificate and operate systems of very different strength. The way to tell them apart is to read the hazard analysis, follow one real batch through the flow diagram, and check whether the monitoring records genuinely exist for the critical limits the plan claims to control.
HACCP Team Reviewing a Flavor Production Flow Diagram | CUIGUAI
HACCP is defined by Codex Alimentarius. The Codex General Principles of Food Hygiene, together with its HACCP annex, sets out the seven principles that almost every national scheme borrows, and the 2020 revision of that document reorganised the relationship between HACCP and prerequisite programs so that the two are read as one integrated system. In the United States, HACCP became mandatory for seafood in 1995, meat and poultry in 1996, and juice in 2001, and its preventive logic was extended to nearly all food facilities by the FDA Food Safety Modernization Act of 2011 through the Preventive Controls for Human Food rule. That rule requires a written food safety plan, prepared or overseen by a preventive controls qualified individual, built on hazard analysis and risk-based preventive controls, which is HACCP thinking applied with wider scope.
In the European Union, Regulation (EC) No 852/2004 on the hygiene of foodstuffs obliges food business operators to put in place, implement, and maintain permanent procedures based on HACCP principles, and Article 5 of that regulation requires the system to follow Codex logic. ISO 22000:2018, Food safety management systems, Requirements for any organization in the food chain, folds HACCP principles into a full management-system structure and is the standard against which most flavor exporters are certified. GFSI-benchmarked schemes such as BRCGS Food Safety and FSSC 22000 all require a documented HACCP plan as a condition of certification, and customer specifications frequently add their own expectations on top.
For a flavor house, the practical consequence is layered compliance. A concentrate shipped to a United States customer sits under FSMA preventive controls. The same concentrate shipped to Germany sits under Regulation 852/2004 and possibly ISO 22000. A customer audit may reference BRCGS or FSSC criteria no matter where the product is going. The good news is that a properly constructed HACCP plan satisfies all of these frameworks simultaneously, because each of them rests on the same seven principles and the same requirement for documented, verified control.
The three frameworks use different vocabulary for the same idea. Codex speaks of critical control points and critical limits. FSMA speaks of preventive controls, process controls, allergen controls, sanitation controls, and supply-chain controls, and it adds a requirement for a recall plan as part of the written food safety plan. ISO 22000 speaks of operational prerequisite programs and critical control points, and it demands that the organisation validate the control measures it selects. A flavor manufacturer who builds a Codex-style HACCP plan and then maps each control to the FSMA category and the ISO 22000 clause will satisfy every auditor with a single document set.
For buyers, the useful question is not which certificate a supplier holds but which control categories are covered. A supplier who can walk through allergen controls, sanitation controls, supply-chain controls, and process controls for a specific concentrate is operating a mature system regardless of the logo printed on the certificate.
Before a single hazard is analysed, five preliminary steps establish the boundaries of the study. Skipping them is the most common reason a HACCP plan fails on review, because the analysis is only as good as the product description and flow diagram it is built on.
Codex requires the HACCP team to have specific knowledge and expertise appropriate to the product under study. For liquid flavoring that means production, quality assurance, engineering and maintenance, sanitation, and warehouse representation, with access to flavor chemistry competence. Where the concentrate is intended for e-liquid use, the team also needs competence in nicotine-free handling, cross-contamination control, and the packaging interactions that occur when flavor compounds contact elastomers and plastics, a subject covered in CUIGUAI’s analysis of child-resistant cap and flavor interaction issues. Where a required skill is missing, external expertise must be brought in and the reason recorded.
The product description should state composition, flavor profile, physical and chemical properties such as water activity, acidity, viscosity, flash point, and solubility, packaging format, intended use, target consumer, shelf life, and storage conditions. For a liquid flavor concentrate the description must also state which downstream category the product is destined for, because intended use drives hazard severity. A concentrate destined for a food or beverage application is evaluated differently from one destined for an inhaled product, and the plan should say so explicitly.
Intended use covers dilution ratios, whether the product is consumed as supplied or further processed, whether the user is a trained industrial operator or a consumer, and whether any susceptible population is involved. A flavor concentrate used at one percent in a beverage and the same concentrate used at ten percent in an e-liquid present different exposure profiles, and the hazard analysis must reflect the realistic worst case rather than the most convenient one.
The flow diagram must show every step from raw material receiving to finished goods dispatch, including transport, storage, rework loops, sampling points, and by-product streams. A representative liquid flavor sequence runs: receiving and quarantine of flavoring substances, solvents, carriers, and additives; warehouse storage; weighing and dispensing; blending or compounding; homogenisation; filtration; in-process quality control sampling; filling; capping; labeling and coding; secondary packaging; palletising; finished goods storage; and dispatch. Each step is numbered so hazard analysis can reference it precisely.
The team must walk the line while it is running, not during a quiet afternoon, and confirm every step against reality. Verifying on site is where plans usually change: a rework line nobody documented appears, a sampling point turns out to be open to the room, a filter is found to be bypassable. The dated, signed verification record is a document auditors ask for by name, and its absence is one of the fastest ways to lose credibility during a certification audit.
HACCP Team Reviewing a Flavor Production Flow Diagram | CUIGUAI
With the groundwork complete, the seven principles convert the flow diagram into a controlled process. Each principle has a specific deliverable, and each deliverable must be traceable back to a numbered step in the flow diagram.
The team identifies every reasonably foreseeable hazard at every step and decides which are significant enough to require control. Hazards are grouped into biological, chemical, and physical categories, and where the destination market requires it, radiological. For flavor concentrates the credible biological hazards are limited but not zero, the chemical hazards are numerous and largely invisible, and the physical hazards come mostly from equipment and packaging rather than from ingredients. Significance is judged on severity multiplied by likelihood, and the justification for each decision is written down, not assumed.
A critical control point is a step at which control can be applied and is essential to prevent, eliminate, or reduce a significant hazard to an acceptable level. The Codex decision tree is the standard tool for the judgement. In liquid flavor production the recurring candidates are allergen addition and allergen changeover cleaning, filtration for foreign body elimination, final product release against specification, and heat treatment where a product requires it. A plan that lists fifteen critical control points is usually compensating for weak prerequisite programs, and auditors read it that way.
Every critical control point needs measurable limits, and those limits must come from a validated scientific basis rather than from habit. Typical flavor examples include a filter rating validated to retain the target particle size, allergen cleaning verification against a limit derived from a validated analytical method, release criteria such as identity, assay, specific gravity, refractive index, and absence of visible particulate, and metal detection thresholds expressed in millimetres for ferrous, non-ferrous, and stainless steel test pieces. Limits should carry a safety margin so that normal process variation does not drift into a deviation.
Monitoring answers four questions for every critical control point: what is measured, how it is measured, when and how often it is measured, and who is responsible. Continuous monitoring is preferred wherever it is feasible, for example inline differential pressure across a filter or a metal detector running on every unit. Where monitoring is periodic, the frequency must be justified by process capability and batch size rather than convenience. Records must be made at the time of monitoring by the person performing it, initialled, and reviewable by a supervisor.
Corrective actions must be written in advance for every deviation. A complete corrective action does three things: it deals with the affected product, usually by holding and quarantining everything produced since the last acceptable monitoring result and then evaluating it; it corrects the immediate cause so the process returns to control; and it addresses the system so that the same deviation is not repeated. The record must state the deviation, the product disposition, the root cause investigation, and the verification that no unsafe product was released. Corrective actions that only fix the batch are the single most common weakness found in flavor factory audits.
Verification confirms that the plan as written is working in practice. It includes calibration and accuracy checks of monitoring instruments, review of monitoring and corrective action records, targeted sampling and testing, direct observation of monitoring being performed, internal audits, and review of customer complaints. Verification also includes validation, which is the separate activity of obtaining evidence that a chosen control measure is actually capable of controlling the hazard, for example challenge testing a cleaning procedure against a known allergen or testing filter integrity under worst-case conditions. Validation happens before the control is relied upon; verification keeps confirming it afterwards.
The plan itself is documentation: the flow diagram, the hazard analysis, the critical control point determination, the critical limits, and the supporting references. The evidence that the plan was followed is records: monitoring records, deviation and corrective action records, verification and calibration records, training records, sanitation and cleaning validation records, supplier approvals, and complaint files. Retention periods should be defined in writing and set longer than the product shelf life plus the regulatory minimum, and records must remain legible, attributable to a batch, and protected against loss when software systems are replaced.
Hazard analysis is the intellectual core of the plan, and it is the section a competent auditor reads first. For liquid flavoring, the useful way to structure it is by hazard category, because the controls that follow depend on which category is in play.
Flavor concentrates are not sterile products and are not intended to be. Low water activity and high solvent content limit microbial growth, but they do not eliminate the hazard. Environmental organisms introduced by water-based ingredients, by inadequate cleaning of wet equipment, or by condensate in poorly designed pipework can persist in product-contact pockets and in biofilms. The realistic controls are ingredient specifications, documented supplier approval, hygiene management of wet areas, defined maximum hold times for any open or partially filled product, and cleaning verification. Where a flavor is delivered as an emulsion or contains an aqueous phase, the microbiological risk profile changes and the hazard analysis must say so.
Allergen cross-contact is the highest-profile chemical hazard in flavor manufacturing because it is invisible, cumulative, and label-critical. Cereal-derived, milk-derived, egg-derived, tree nut, peanut, soy, celery, mustard, sesame, sulphite, and gluten-containing ingredients all appear in commercial flavor formulas, and a changeover that is not validated can transfer enough protein to matter. Chemical hazards also include residual solvents, heavy metals such as arsenic, lead, cadmium, and mercury, pesticide residues, and substances migrating from packaging materials. Hazard identification for these begins with the safety data sheet, and the way to read those documents for hazard extraction is explained in CUIGUAI’s guide to Sections 2 and 3 of a flavor safety data sheet, which covers hazard identification and composition data respectively.
Physical hazards in a flavor plant rarely come from the ingredients. They come from worn blades, sieves, and pump impellers, from elastomer and plastic fragments shed by gaskets, hoses, and seals, from glass sight glasses and laboratory glassware, from wooden pallets, and from filter media fibres. The controls are a maintenance and inspection programme with defined wear limits, filtration positioned as a critical control point where the risk justifies it, metal detection where particulate risk is credible, glass and brittle plastic registers with documented breakage handling, and clear segregation of sampling tools and containers.
Rework is a classic blind spot. Line flushes, retained samples, and returned product can re-enter a blend and reintroduce an allergen, a foreign body, or a microbiological load that was previously controlled. The plan must define whether rework is permitted at all, at what maximum percentage, with what identity verification, and with what additional testing. Sampling tools and containers must be dedicated and cleaned to the same standard as production equipment, because a contaminated sampling scoop can inoculate an otherwise clean batch. Packaging materials must be food-grade and covered by supplier approval, and where the finished consumer product uses tamper-evident or child-resistant closures, the packaging specification becomes part of the hazard analysis rather than a purchasing detail.

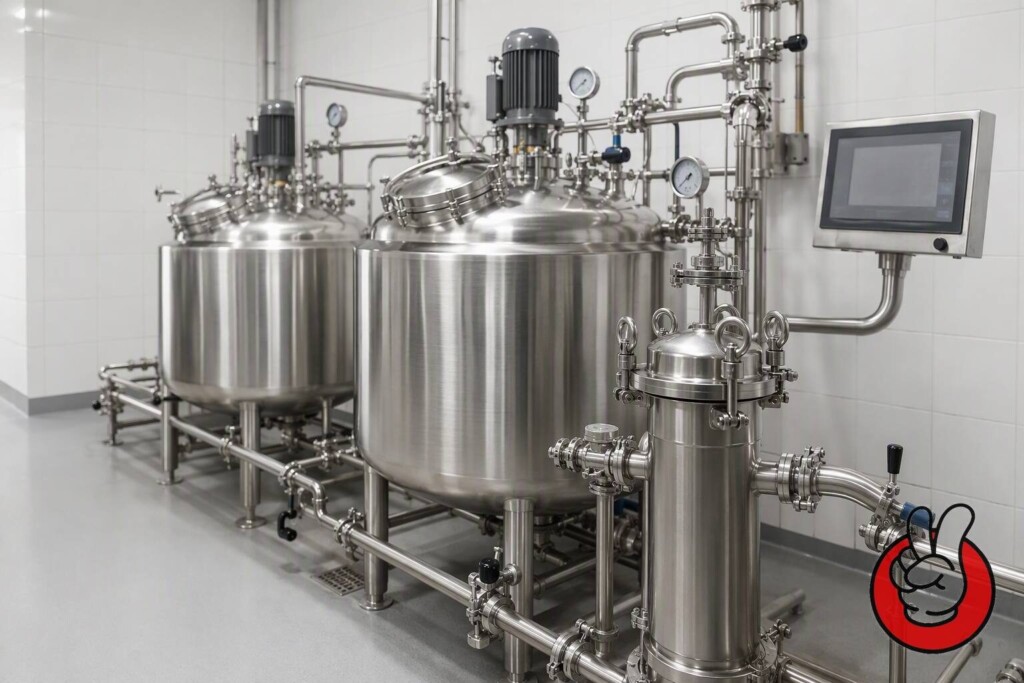

Inline Filtration on a Stainless Steel Flavor Blending Line | CUIGUAI
A representative critical control point map for a liquid flavor concentrate produced at commercial scale is set out below. The exact number of points depends on the product, the equipment, and the destination market, and the map should be justified step by step rather than copied from a template.
Where incoming ingredient safety cannot be assured by supplier certification alone, receiving becomes a control point. The controls are verification of identity, lot number, certificate of analysis, seal integrity, and container condition, followed by quarantine release by the quality laboratory against a written specification. Everything hinges on holding material until release, and on never allowing a partially consumed drum to bypass the approval status of its lot.
Weighing is where formula accuracy and allergen segregation are won or lost. Controls include calibrated scales with defined accuracy tolerances, verified ingredient identity by label and lot, dedicated or verified-clean utensils for allergen-containing materials, and a second-person check for high-risk components. Dispensing records that reference the exact lot numbers consumed are also the raw material traceability backbone that a later recall investigation will depend on.
Blending controls focus on order of addition, temperature limits for heat-sensitive flavoring substances, mixing time and speed verified against the master batch record, and the sequencing rules that keep an allergen-containing run from contaminating a subsequent allergen-free run. Where a blend is heated, the temperature and time become measurable parameters whose deviation must trigger a documented evaluation rather than an informal judgement call.
Filtration is the most common physical hazard control point in flavor production. The critical limit is the validated filter rating, and the monitoring is verification of correct filter installation, integrity, and change schedule, supported by differential pressure where available. Pre-use and post-use filter inspection records, together with a documented procedure for the event of a filter breach, turn a routine maintenance task into a defensible control.
Filling and capping control containment and container integrity, and coding controls traceability. Controls include verified container and closure compatibility, torque or seal integrity checks, weight or volume verification, and confirmation that the correct batch code is applied to the correct product. Line clearance between batches prevents mix-ups, and label verification by scanner prevents a mislabelled lot from entering the market, which is the failure mode that converts a small internal deviation into a public recall.
Final release is a control point where the specification includes a safety-related criterion such as allergen declaration consistency, absence of foreign matter, or a microbiological limit. Storage controls then maintain product integrity through defined temperature ranges, segregation of hold and released stock, pest control, and stock rotation. A finish-goods hold rule that releases product only after laboratory approval is one of the simplest and most effective controls a flavor factory can operate.
HACCP does not stand alone, and the 2020 revision of the Codex General Principles of Food Hygiene made that relationship explicit by presenting prerequisite programs as the base on which HACCP is built. Premises and layout, cleaning and disinfection, pest control, personnel hygiene, training, maintenance, supplier management, and waste control all belong to that base. A flavor factory with weak prerequisites will produce a HACCP plan full of critical control points compensating for basic failures, and that pattern is a clear signal of trouble to an experienced auditor.
Cleaning is the control that protects allergen-free claims, and it must be validated rather than assumed. Validation establishes that a defined procedure, with defined detergent, concentration, temperature, contact time, and rinse volume, reduces the target residue below a documented limit under worst-case conditions. Routine verification then confirms the procedure is being performed as validated, using visual inspection plus a specific test such as allergen-specific swab or rinse analysis, or a general organic residue test. Changeover matrices that define which product sequence requires which cleaning level are an efficient way to convert the validation into daily practice.

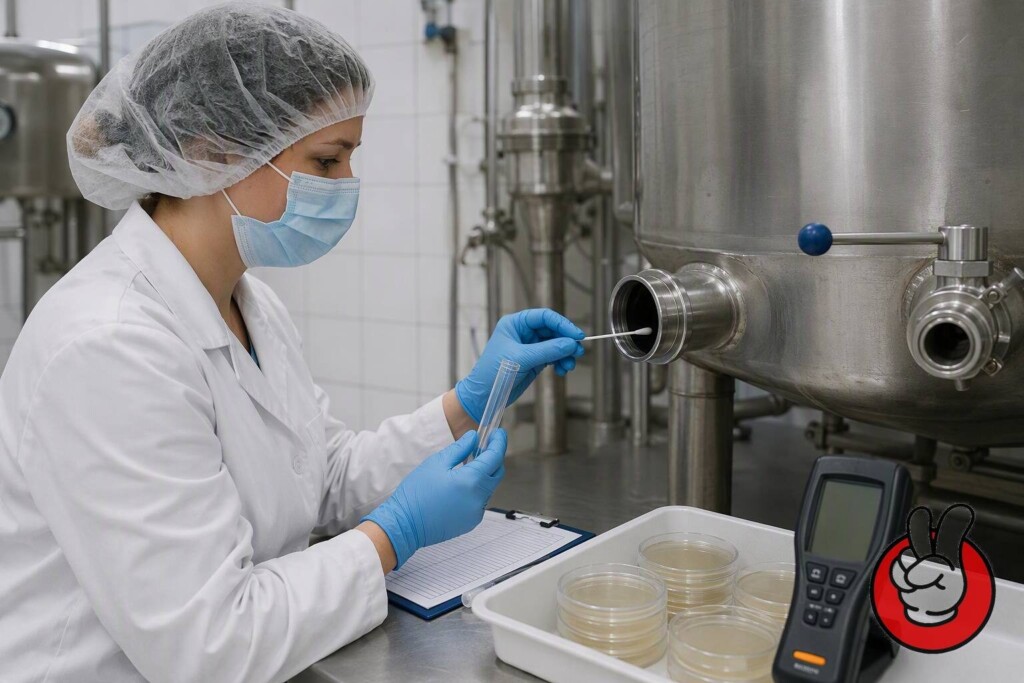

Allergen Cleaning Verification Swab Test in a Flavor Plant | CUIGUAI
Flavoring substances, solvents, carriers, and additives must be purchased only from approved suppliers operating under documented approval criteria. Those criteria normally include a certificate of analysis for each lot, a specification agreed in writing, allergen and regulatory statements, and a completed supplier questionnaire supported by audit or certification evidence. Supply-chain controls also extend to packaging suppliers and to transport conditions, because a clean concentrate can be contaminated by a dirty tanker or by an unsuitable liner.
People are both the strongest and the weakest control in a flavor plant. Training must be role-specific and recorded, covering hygiene rules, allergen awareness, glass and brittle plastic policy, deviation reporting, and the specific monitoring tasks each operator performs. The behavioural element matters more than the certificate: an operator who stops the line and reports an out-of-specification reading is worth more to a HACCP system than a binder of signed attendance sheets.
A HACCP plan is a living document. Codex expects reassessment when anything changes, and for a flavor manufacturer change is constant: a new ingredient, a new supplier, a reformulation, a new filling line, a new packaging format, a new export market, a new customer application, or a complaint that suggests an unconsidered hazard. The plan should be formally reassessed at least annually and whenever a trigger event occurs, with the reassessment dated, signed, and version-controlled.
Verification activities should be scheduled on a calendar rather than performed only when an audit approaches. A practical rhythm is monthly record review, quarterly internal audit of one prerequisite program and one control point, semi-annual calibration review, annual full plan reassessment, and periodic mock recall exercises. Each activity generates evidence, and that evidence is what turns a claim of control into a demonstrated fact.
The same findings recur across the industry, and a buyer can use them as a checklist when reviewing a supplier.
These questions separate a documented system from a decorative one. Ask them during a supplier audit and request the records that support each answer.
Quality systems and product lines reinforce each other. A supplier whose controls are genuinely in place can demonstrate them on any product, from a fresh black tea flavor concentrate used in beverage applications to a vanilla cream flavor concentrate used in vape and food formats, and the records should look equally disciplined in both cases.
A control system only becomes real when you can see the records behind it. CUIGUAI supplies flavor concentrates with full documentation packages, and we are glad to walk a buyer through the hazard analysis, monitoring records, and verification evidence that sit behind any product we ship.
